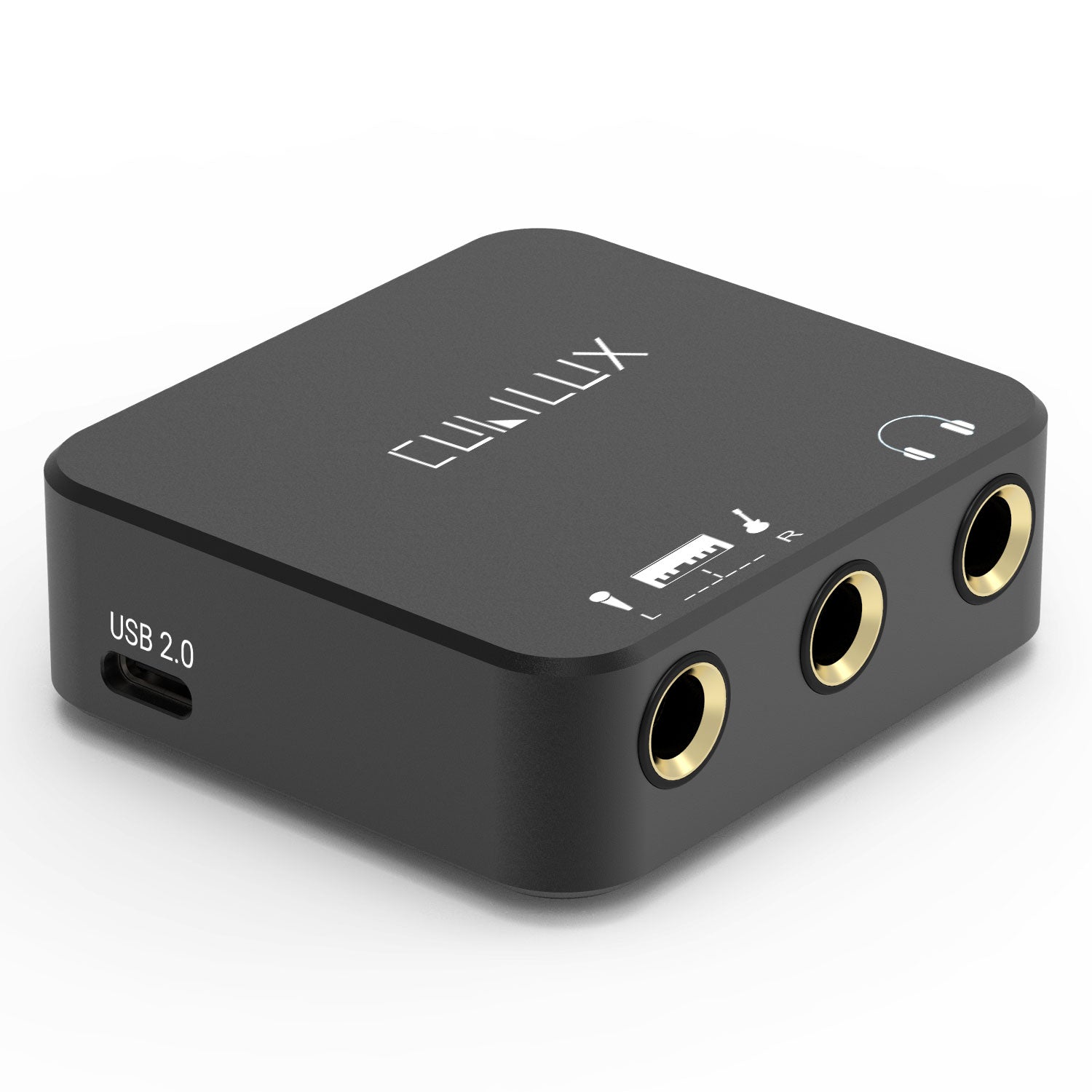

USB C to Guitar Adapter

HIGHLIGHT

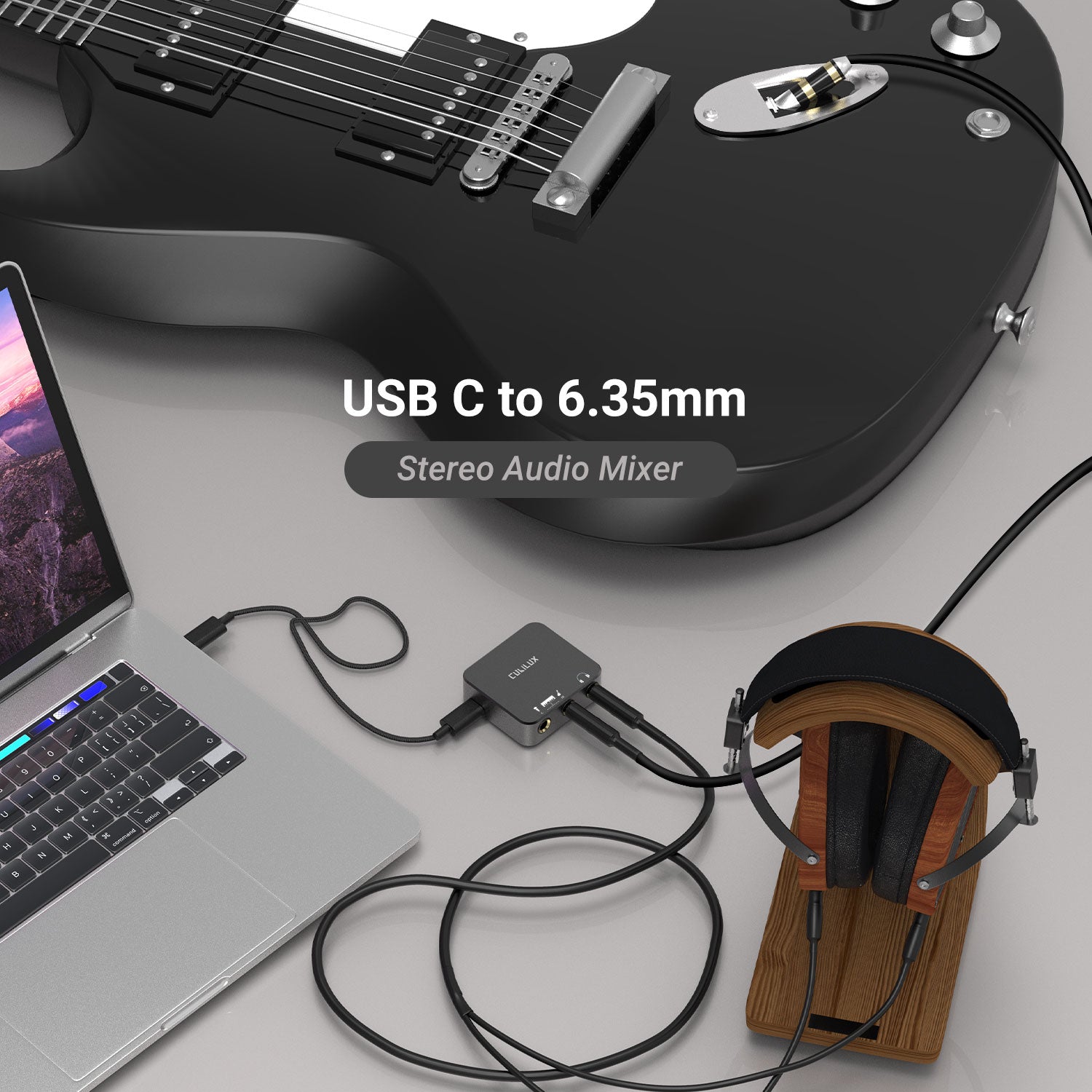

• [USB C to Instrument Interface] – Cubilux HMS-C3 USB C to 6.35mm Audio Interface allows musicians to record instruments line in signals such as digital keyboard, bass guitar, or microphone (without power supply) input signals with USB Type C mobile devices and laptops, so they can effortlessly create songs and symphonies at home or on the go.
• [Stereo Recording] – This adapter offers separated left and right channel inputs, letting you effortlessly record stereo sound. Please note: The recording device and recording App must both support stereo audio input, or you can only record mono sound.

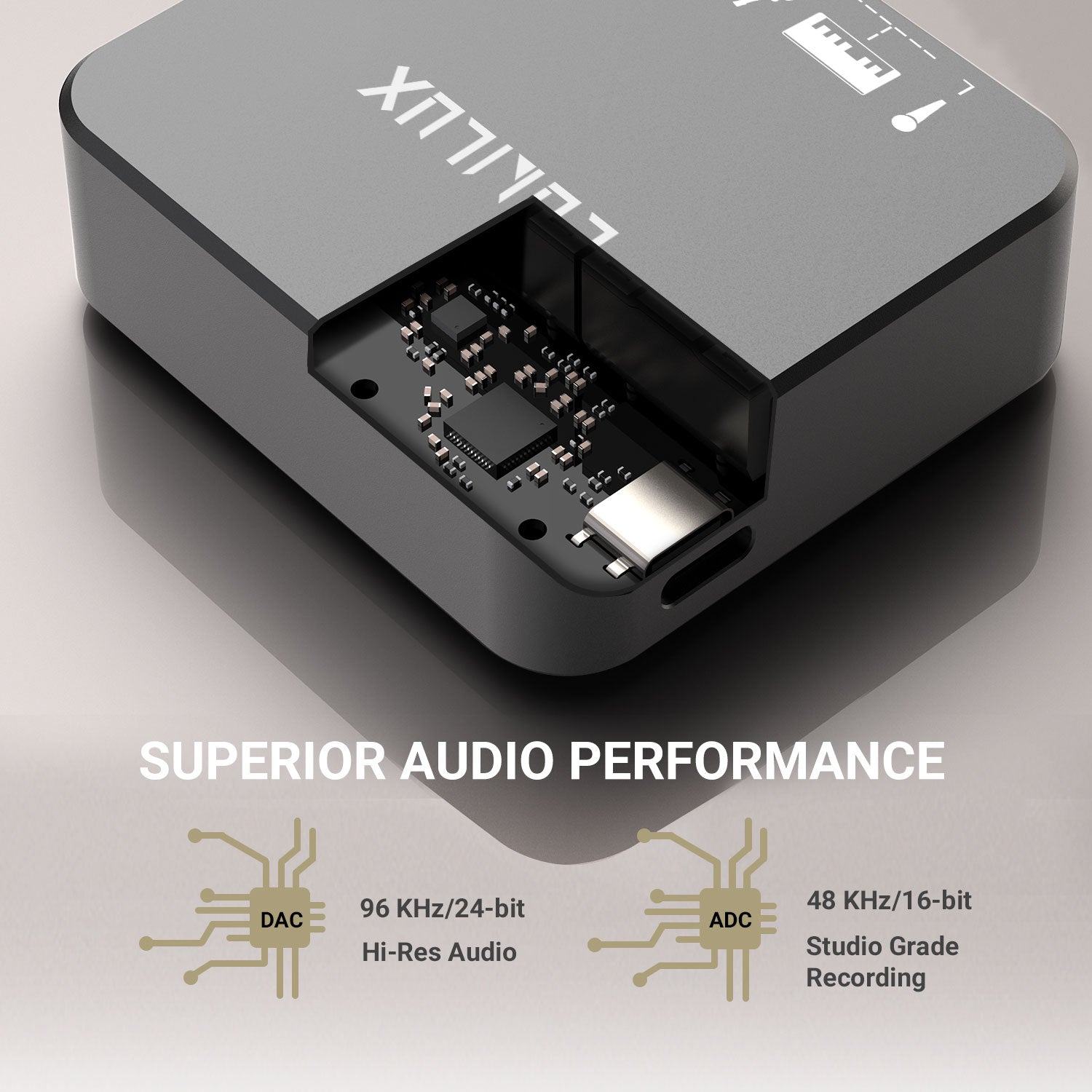

• [Superior Audio Quality] – The built-in DAC is powerful enough to drive premium headphones up to 300 ohms and capable of decoding audio streams up to 96KHz/24-bit. And the ADC supports studio-grade recording up to 48KHz/16-bit.
• [Monitoring Headphone Jack] – The adapter also provides a headphone jack, so you can hear the audio contents right away after recording.
• [Universal Compatibility] - Support Laptop, MacBook, Computer. Compatible with iPhone 15/15+/15 Pro Max (USB C version), iPad Pro (USB C version), iPad Air 5/4, iPad 10; Samsung Galaxy S23/S22/S21/S20, Z Fold 4/3/2, Z Flip 4/3/2, Tab S9/S8/S7; Google Pixel 8/7/6 Pro, 8/7/6/5/4/3/2/1, 7a/6a, Pixel Fold, Pixel Tablet. Please note: Phones and tablets NOT in the list might not support stereo audio input and won't work properly with the item.

Cubilux Quarter Inch(6.35mm) Audio Mixer

Ideal for Instruments Recording

Bearing the idea of quick and easy recording, here comes the Cubilux Audio Mixer. With the mixer, you can easily set up a MIC/Line level stereo recording system with your USB C devices for podcasts, co-host interviews, singing and music creation.

• Transfer the Microphone or Instrument level signal directly to your USB C device
• Support dual microphones L/R stereo input for interviewing
• Built-in ADC for 48 KHz/24-bit studio-grade recording
• Support professional monitor headphones up to 300 ohms

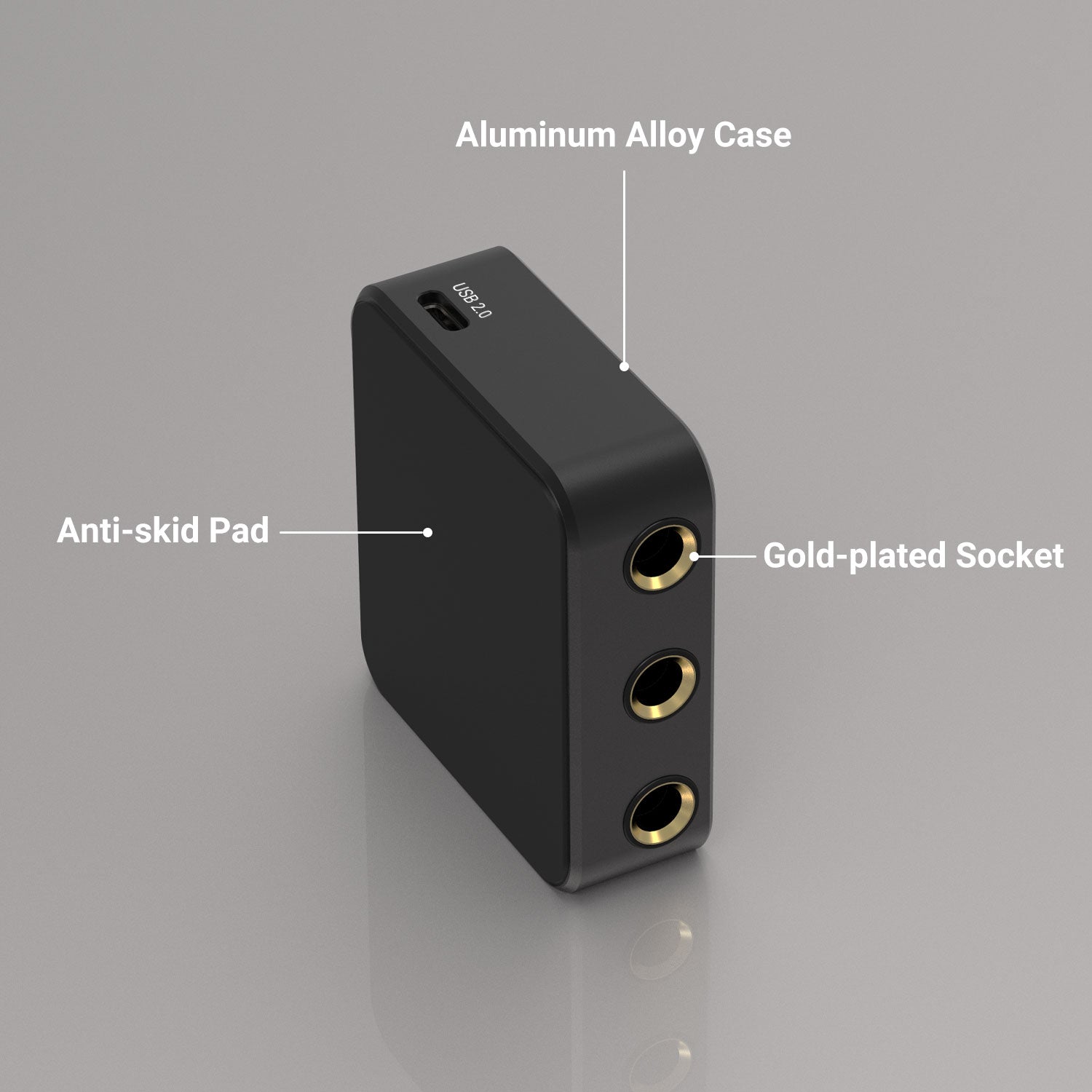

• Metal housing for durability

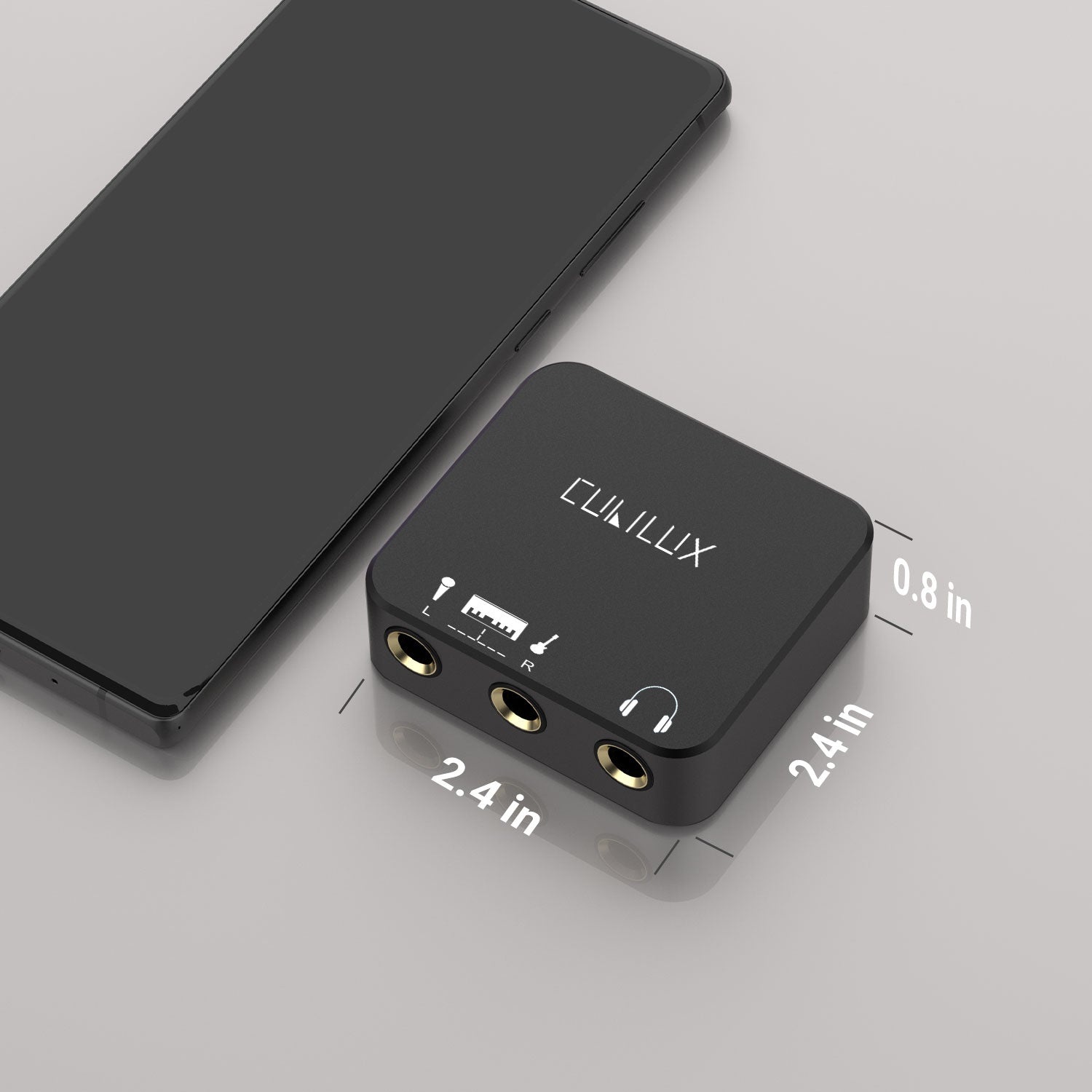

• Compact and lightweight

Important Note

• The adapter is ONLY for Microphone and Instrument level signal, NOT for Line level input.

Biaural Stereo Recording

Recommended Stereo Software/APPs

• iOS/iPadOS/MacOS: GarageBand
• Android: Voice Recorder(from Splend Apps)
• Windows: WavePad

Please note: The recording device and recording App must both support stereo audio input, or you can only record mono sound.

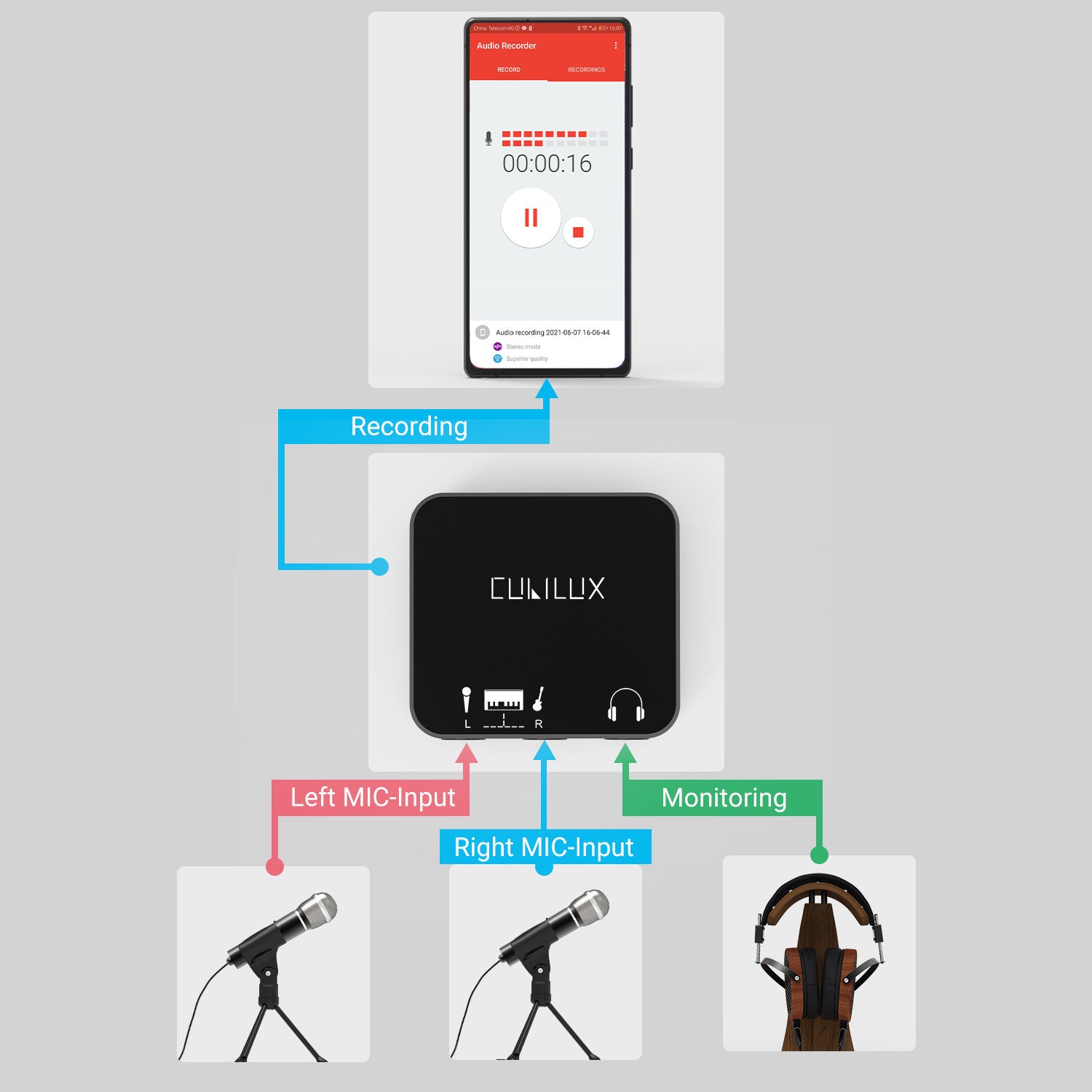

Connection Details

Specifications

Connection:

• 1 X USB Type C 2.0 Port
• 2 X 6.35mm Microphone Jack
• 1 X 6.35mm Headphone Jack

Sampling Rate:

• DAC: 44.1~192 KHz, 24/16-bit
• ADC: 16~48 KHz, 24/16-bit
• DAC Output Impedance: Max 300 ohm
• Material: Aluminum Alloy

Suitable for USB Type C Devices

Package Contents

• 1 X HMS-C3 Microphone Adapter
• 1 X Type C Male to Type C Male Cable

Universal Compatibility



Please Note:

• The device and recording App MUST support stereo sound input or you will only record mono sound.
• The adapter is NOT compatible with Gopro, DJI Osmo Pocket or any other action camera.

Compatible with

• iPhone 15 Pro Max・15 Pro・15/15+
• iPad 2022 iPad 10.9"(Gen 10th)・2022/2021/2020/2018 iPad Pro 12.9"(Gen 6th/5th/4th/3rd)・2022/2021/2020/2018 iPad Pro 11 (Gen 4th/3rd/2nd/1st)・2022/2020 iPad Air(Gen 5th/4th)・2021 iPad Mini(Gen 6)
• Mac MacBook Air 13"(All Version)・MacBook Pro 13"/14"/15"/16"(All Version)・MacMini (All Version)・iMac 21.5"/24"/27"・iMac Pro 27"・Mac Pro・Mac Studio
• Samsung Galaxy Phone S23/S22/S21/S20 Ultra・S23/S23+/S22/S22+/S21/S21+/S20/S20+・S23/S21/S20 FE・Z Fold 5/4/3/2/1・Z Flip 5/4/3/2/1・Note 20/10
• Samsung Galaxy Tab S9/S8 Ultra・S9/S9+/S8/S8+/S7/S7+/S6・S9/S7 FE・S5e
• Google Pixel 8/7/6 Pro・Pixel 8/7/6/5/4/3/2/1・Pixel 7a/6a・Pixel Fold・Pixel Tablet・Pixel 4/3/2/1 XL

and more...
